Built-in inverter
One compact main module with fewer separate components.
1
6
Meet the ZinVolt Core
The all-in-one home battery for control over your own energy.
The ZinVolt Core combines a built-in inverter, 4 kWh battery storage, and smart energy management in one compact system. The Core forms the basis and expands with ZinVolt Link modules up to 16 kWh.
Read how a home battery works with solar panels or compare home batteries.
4 kWh storage
Immediately complete and expandable to 16 kWh later.
Smart energy management
Automatic charging and discharging based on measurements and settings.
Modular system
Every ZinVolt Link adds 4 kWh of extra storage.
4–16 kWhModular expansion
All-in-oneInverter and storage in one system
Storage4–16 kWh
Power3,680 W
TechnologyLFP
Cycles10,000
Warranty10 years
IncludedZinVolt-app
The energy market is changing
Daytime storage will become more important from 2027 onwards.
After the net metering scheme ends, electricity you draw from the grid later will no longer be offset against your earlier feed-in. If you feed in a lot during the day and buy electricity again in the evening, your energy bill can increase more quickly as a result.
The ZinVolt Core stores available solar power for when your home needs that energy.
Modular design
One Core. Four storage capacities.
The Core starts with 4 kWh storage. With ZinVolt Link modules, the same tower can be expanded in steps to 8, 12, or 16 kWh. This allows you to start compactly and expand later.

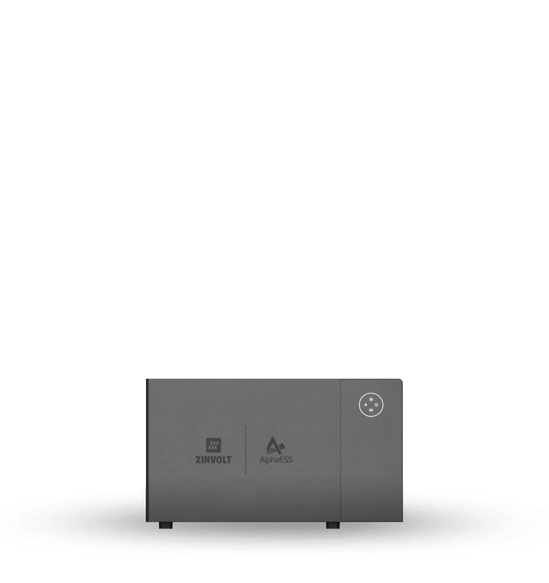

4kWh
1 × ZinVolt Core
ConfigurationCore-module
Dimensions: 528 millimetres wide, 330 millimetres high and 305 millimetres deep. Weight: 45.5 kilograms.

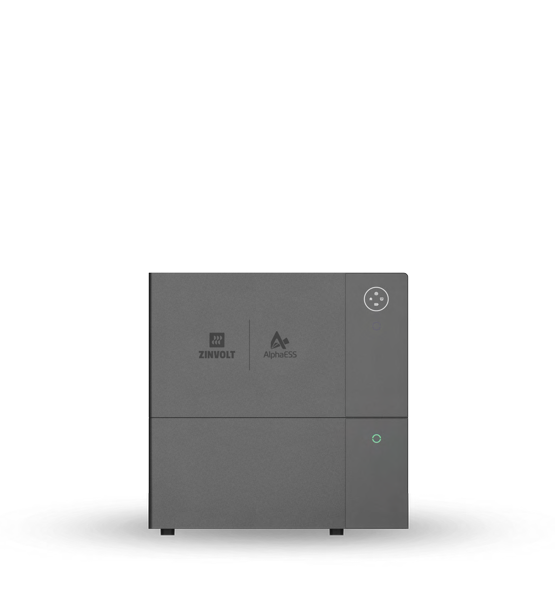

8kWh
Core + 1 Link-module
Configuration2 modules
Dimensions: 528 millimetres wide, 623 millimetres high and 305 millimetres deep. Weight: 82 kilograms.

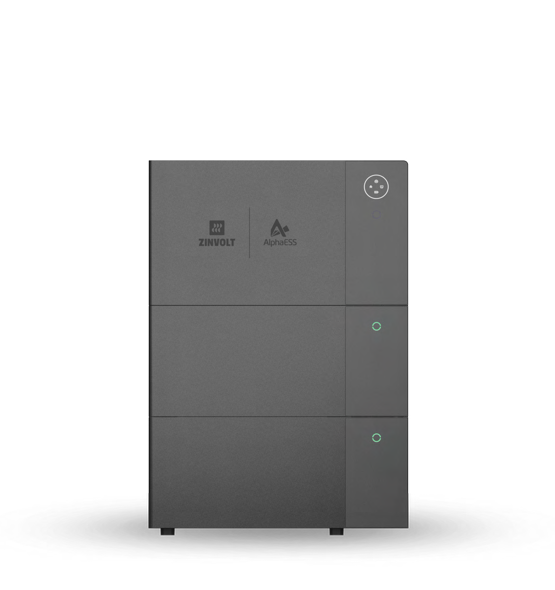

12kWh
Core + 2 Link-modules
Configuration3 modules
Dimensions: 528 millimetres wide, 916 millimetres high and 305 millimetres deep. Weight: 118.5 kilograms.

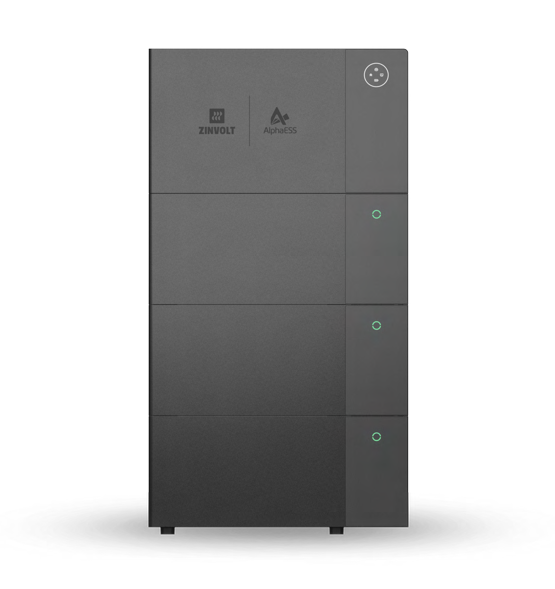

16kWh
Core + 3 Link-modules
Configuration4 modules
Dimensions: 528 millimetres wide, 1209 millimetres high and 305 millimetres deep. Weight: 155 kilograms.

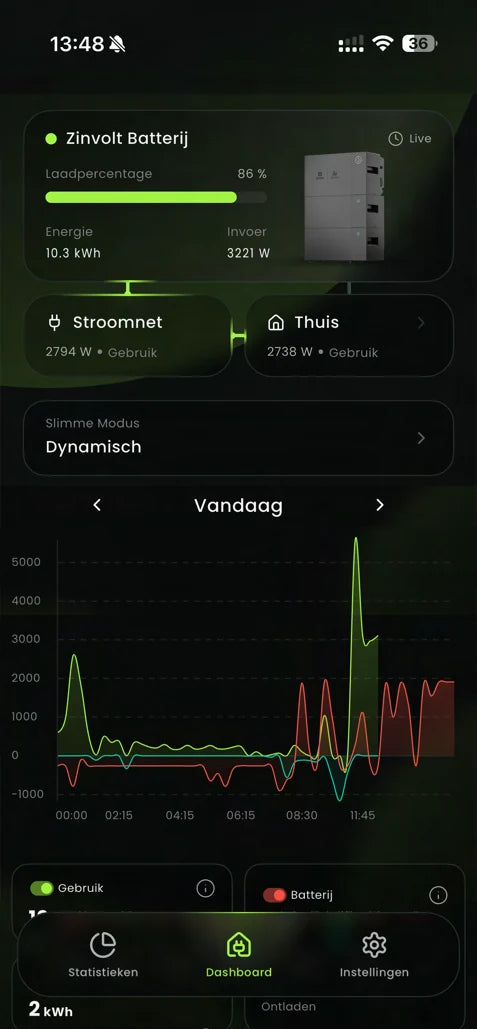

Smart energy management via the app
Always insight into your generation, consumption, and storage.
With the ZinVolt app, you can see what's happening in your home at a glance. View battery status, current energy flows, and historical data.
Always real-time insightinto your system
Smart modeSelf-consumption
Included for free

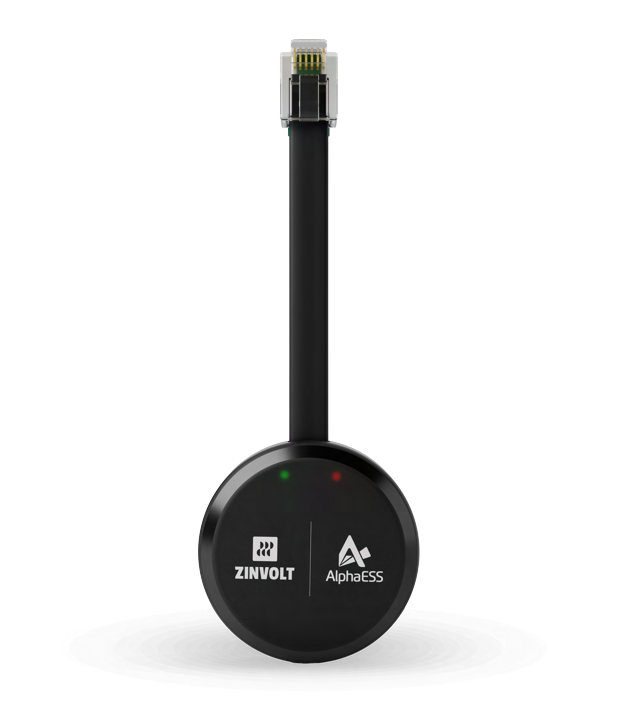

The ZinVolt P1-dongle PRO measures what's happening in your home.
The P1-dongle PRO reads the smart meter. This tells ZinVolt Core how much energy the home uses, exports or draws from the grid, helping the system respond more intelligently to current energy use.
Live insight
Included free
Smart control
Technical Specifications
All technical specifications clearly organized in one place.
View key data directly on the page or open the full datasheet for all technical details and standards.
System data
ModelZVC3600
Nominal output power3,680 W
Battery chemistryLithium iron phosphate, LFP / LiFePO4
Storage capacity4–16 kWh
Warranty10 years
ZinVolt Core main module
Nominal battery voltage12.8 V
Nominal storage capacity4 kWh
Depth of discharge95%
Dimensions, W × D × H528 × 305 × 330 mm
Weight45.5 kg
Backup socket typeEuropean socket
CommunicationWi-Fi, Bluetooth and LAN
Relative humidity0 to 95%, non-condensing
Operating temperature-20 °C–55 °C
Installation environmentSuitable for outdoor installation
IP protection ratingIP65
Maximum operating altitude2,000 m
Safety standardIEC 62477
EMC standardIEC 61000-6-1 / -2 / -3 / -4
Grid standardEN 50549 / VDE 4105 / C10
Grid side and backup output
Maximum AC input current16 A
Maximum AC input power3,680 W
Nominal grid-side AC output current3.5 A
Nominal grid-side AC output power800 W
Maximum grid-side AC output current16 A
Maximum grid-side AC output power3,680 W
Nominal frequency50 / 60 Hz
ConnectionL / N / PE
Nominal voltage230 V
Backup output16 A / 3,680 W / 230 V
Peak power at 102% to 120% load30 seconds
Peak power at 120% to 139% load15 seconds
Peak power above 139% load100 milliseconds
Grid-to-backup transfer time10 ms
ZinVolt Link battery module
ModelZVL4000
Nominal storage capacity4.0 kWh
Nominal voltage12.8 V
Depth of discharge95%
Maximum charge and discharge current157 A / 157 A
Operating temperature-20 °C–55 °C
IP protection ratingIP65
Dimensions per module, W × D × H528 × 248 × 293 mm
Weight36.5 kg
Warranty10 years
Professionally installed
Professionally installed. Ready to use immediately.
Our installers check the technical situation in advance, install the ZinVolt Core, and safely connect the system. Then we configure the Core, link the app, and deliver everything fully operational.
Initial check
We check the connection, meter cupboard, and desired location.
Placing the Core
We install the battery in a stable, accessible location with sufficient clearance.
Secure connection
We connect the Core professionally via an isolator switch and check its operation.
Setup and delivery
We connect the P1 dongle PRO and app, test the system, and clearly explain how it works.
Experiences with ZinVolt
Clear explanations, reliable service, and control over energy.
Real-life experiences show what customers value: an understandable system, good support, and immediate insight into the app.
4.6 out of 5
Check out our Google reviews
“Great system that ensures less power consumption at night and an emergency power option in case of outage. I am very satisfied. The contact with ZinVolt is truly perfect.”
"With my dynamic energy contract, I can now charge cheaply at night. During the day, I use that electricity myself. The app shows exactly what I'm consuming, a smart system!"
“First I gained some experience with three batteries. Now I've added two more so I can get through the evening and night exactly.”
Advice for your home
We are happy to advise you on your home.
Tell us a little about your home. We will then personally help you find a suitable home battery.
Leave your details
Tell us about your home.
Fill in your details. We will contact you for personal advice.
Frequently asked questions
Clear answers to the most important questions.
The exact configuration varies per home. With personal advice, you quickly gain clarity on capacity, connection, and installation.
What capacity suits my home?
The ZinVolt Core starts at 4 kWh and can be expanded to 8, 12, or 16 kWh with ZinVolt Link modules. The best choice depends on your annual consumption, solar generation, grid feedback, and desired usage time.
How is the ZinVolt Core installed?
Our installers will check the meter cupboard and the desired location, install the Core and professionally connect the system. Afterwards, we will link the P1 dongle PRO and ZinVolt app, test the operation and deliver the system with clear explanations.
Why can't I order the ZinVolt Core directly online?
In addition to the professionally installed ZinVolt Core, ZinVolt also sells the plug-and-play ZinVolt Base online. The Core is a different system: it is professionally installed and must be properly integrated with your home, energy consumption, solar panels, connection, meter cupboard, and available space. That's why ZinVolt or an installation partner will consult with you in advance to determine the appropriate storage capacity and technical situation. After that, you will receive a proposal for the correct Core configuration and installation.
Is the Core connected via an isolator switch?
Yes. With the standard installation, we safely connect the ZinVolt Core via an isolator switch. We check in advance whether the connection and meter cupboard are suitable.
Can the ZinVolt Core also be connected via a normal wall socket?
Yes. The ZinVolt Core can be connected via a normal wall socket and comes with a plug. When connected this way, the discharge capacity is limited to a maximum of 800 W if the Core is connected to a circuit that also has other consumers.
Can I expand the storage capacity later?
Yes. Each ZinVolt Link adds 4 kWh of extra storage. One tower can grow from 4 kWh to a maximum of 16 kWh.
Is the P1 dongle PRO included?
Yes. The ZinVolt P1-dongle PRO is included free. The P1-dongle PRO reads your smart meter so that the Core has insight into consumption, grid export and grid import.
What happens during a power outage?
The Core has a backup power outlet with a 10-millisecond transfer time. Compatible devices can be connected directly to it. The Core does not automatically take over the entire home's power supply.
Can the ZinVolt Core be placed outside?
The ZinVolt Core can technically be placed outside under a canopy thanks to its IP65 protection rating. For the best performance and the most stable operation possible, we recommend placing the Core in a dry room with a stable temperature. The final location must always be technically assessed for substrate, ventilation, accessibility, and local conditions.
What does a standard installation include?
A standard installation includes a technical inspection, placement, connection via an isolator switch, standard connection work, and the pairing of the P1-dongle PRO and app. We test the system and clearly explain its operation. Any additional work will always be discussed in advance.
Ready for the next step?
Discover which ZinVolt Core suits your home.
Take the Net Metering Check or leave your details. We will then personally assess the Core, the suitable capacity and your technical situation with you.
